1965 Plymouth Fury

2799 views
46 replies
1 rating 2 rating 3 rating 4 rating 5 rating
  • Member since
    May, 2015
1965 Plymouth Fury
Posted by Goofy62 on Friday, April 12, 2019 5:15 PM

I re-started this Johan 1965 Fury kit about a month ago.

Originally, it was going to be factory stock build, but I have since decided that it will be more along the street machine line.

Nothing earth shattering, but the wheels will be Torque Thrusts and the engine will be basically straight from the Lindberg '64 Dodge "Color Me Gone" kit.

There are a lot of modifications going into this build which I will chronicle in several posts, starting with a complete chassis swap.

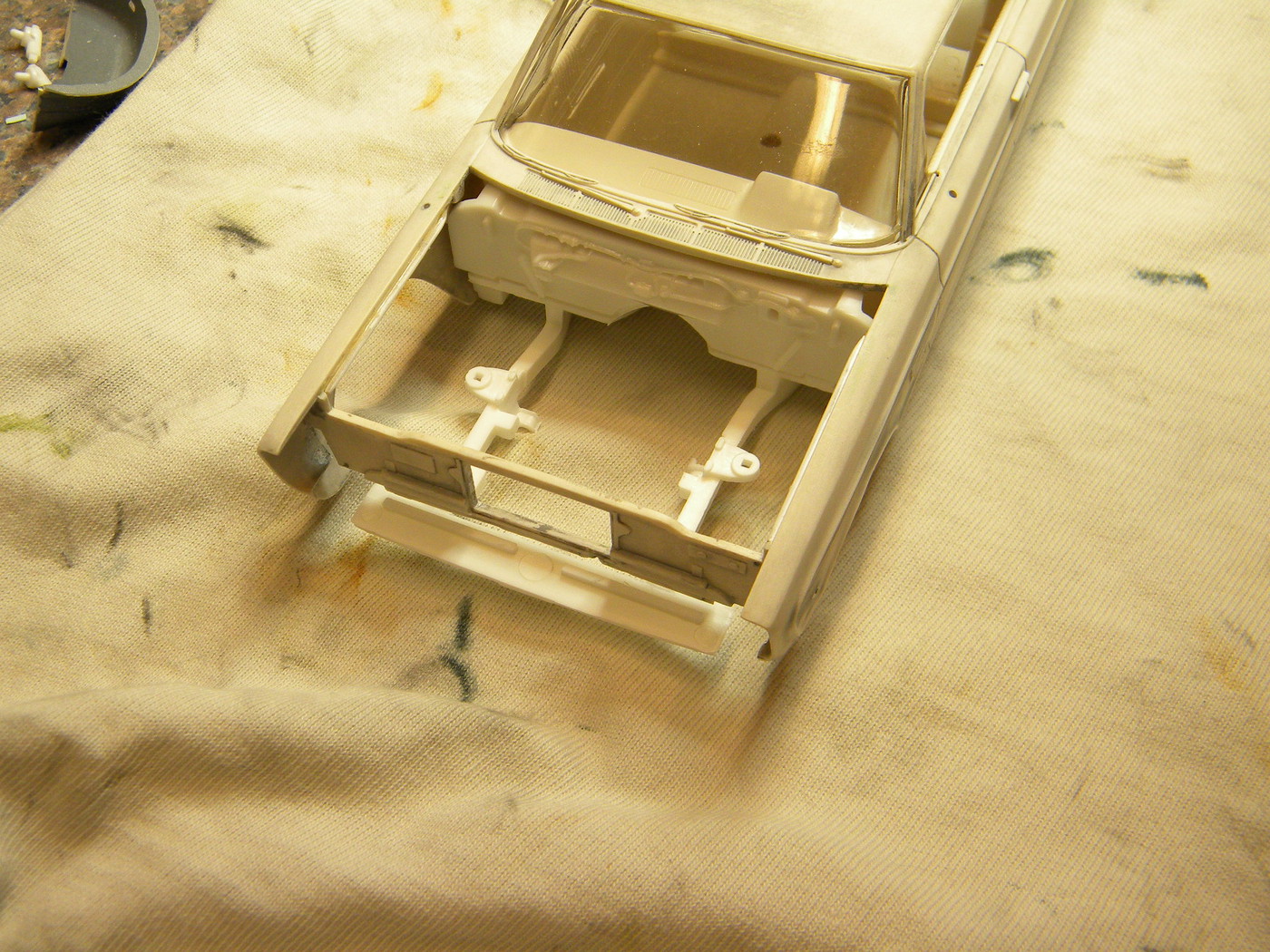

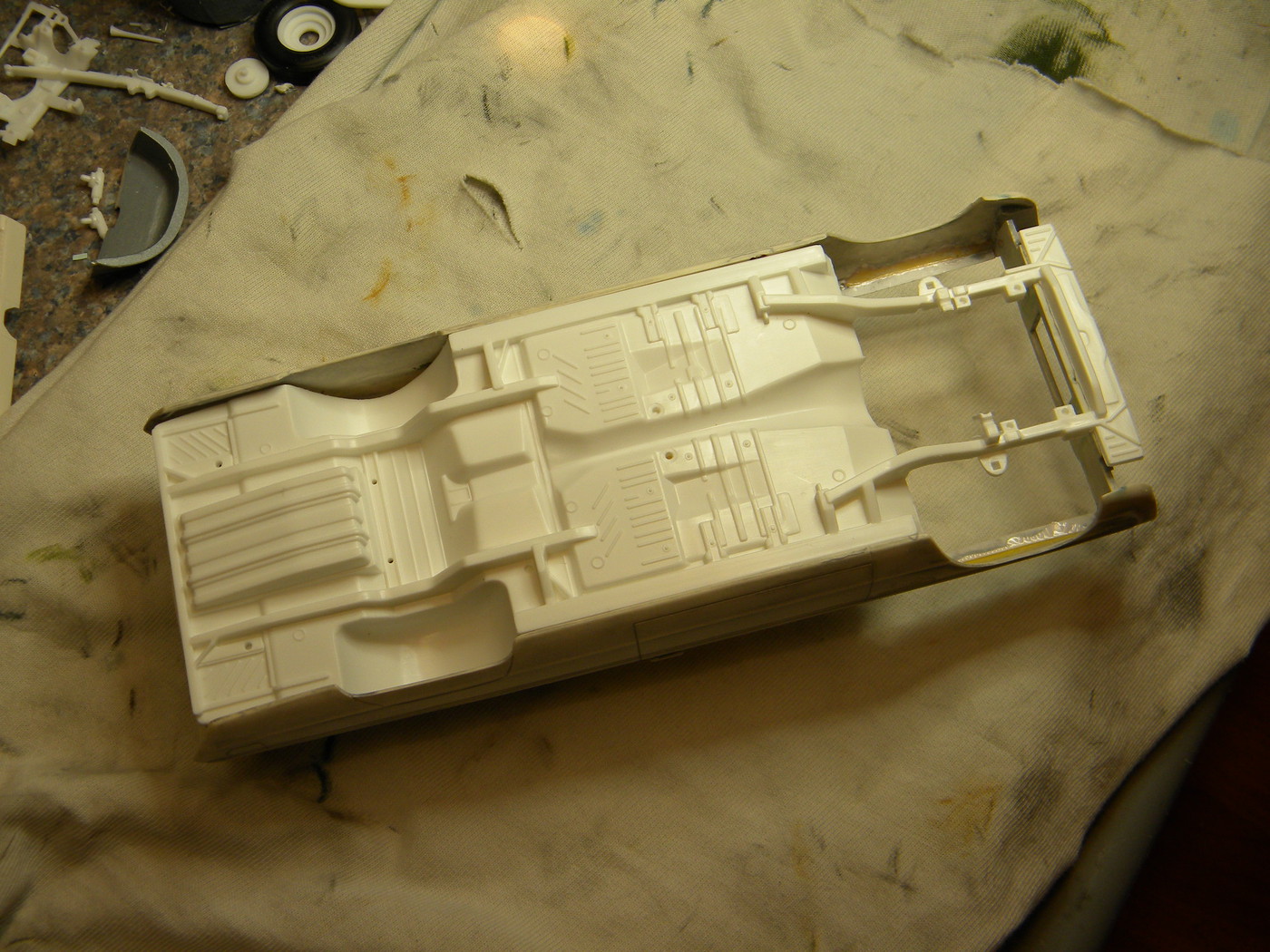

The chassis from the Color Me Gone kit fits with nearly no modifications at all!

Just a little shaving and grinding to allow space for the interior and bumpers.

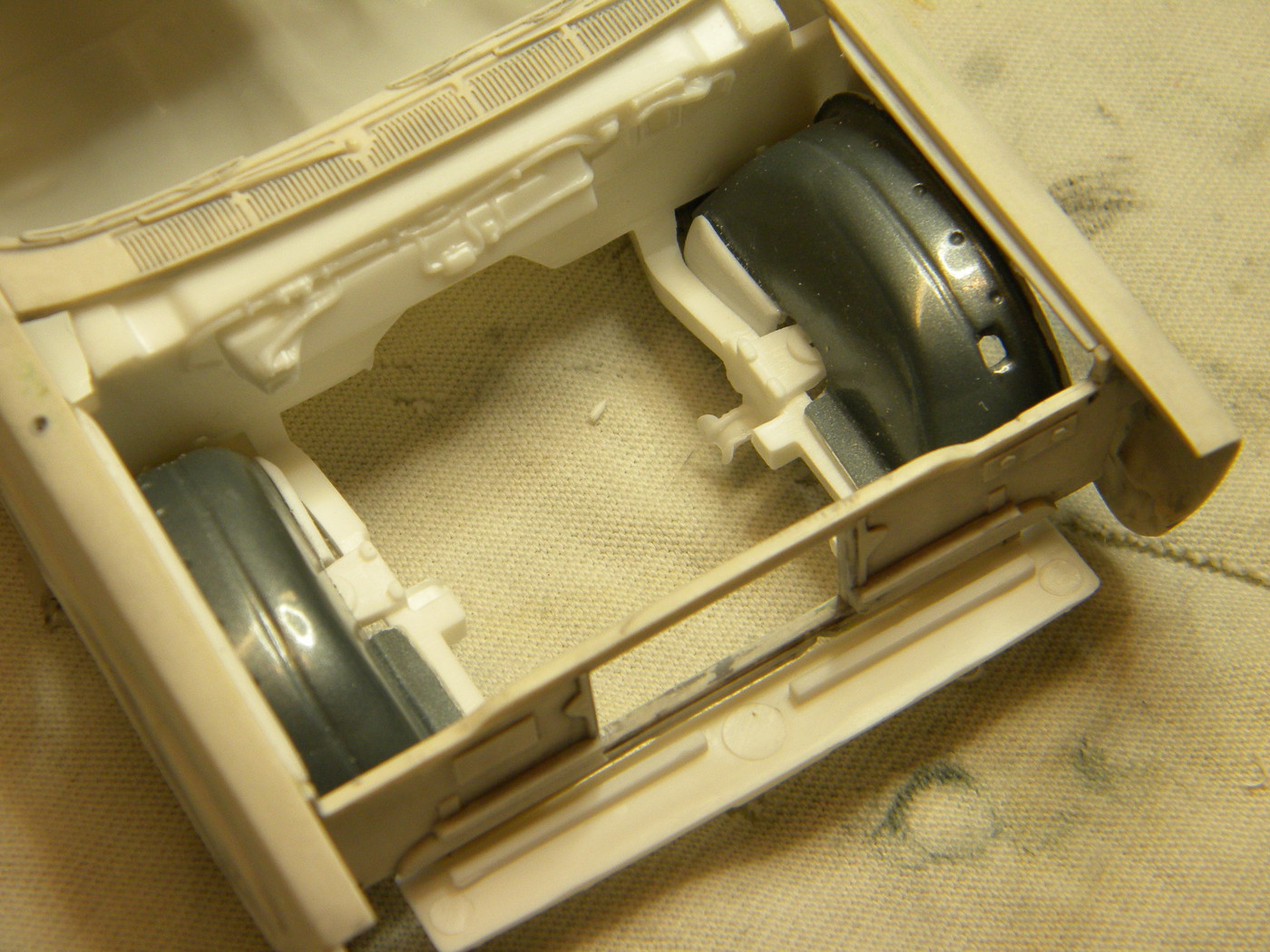

Fender wells from the original Johan kit have been modified and transplanted onto the Dodge chassis, and a battery tray has been added, along with a washer jar fabricated.

Some pretty extensive grinding, shaping and re-fitting was required to allow the body, interior and chassis to all fit together properly.



Steve





  • Member since
    May, 2015
Posted by Goofy62 on Friday, April 12, 2019 5:20 PM

More pics.





Steve



  • Member since
    May, 2015
Posted by Goofy62 on Friday, April 12, 2019 5:31 PM

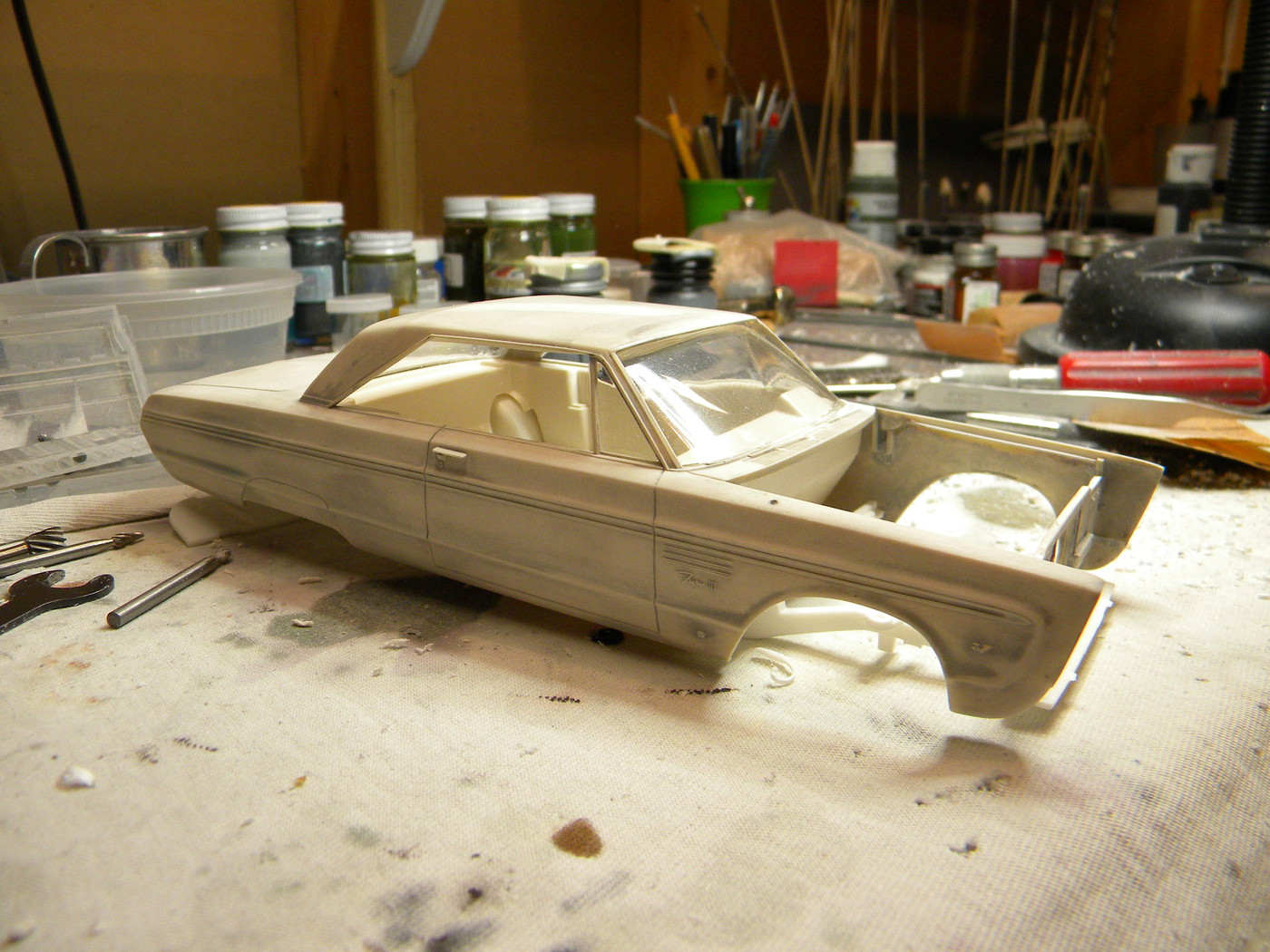

Next, I decided to remove the fender skirts to give the car a little more of a "muscle car" vibe

I couldn't leave the wheels alone either! Stick out tongue

They will be rebuilt using the centers from the wheels included in the AMT '62 Belair kit, the outer rim from the Color Me gone wheels, and re-cast center hubs.

This will make wheel detailing much easier and sharper.

The outer rim will be painted with Alclad "Polished Aluminum", the centers in dark steel and the caps, chrome.



Steve



  • Member since
    April, 2017
Posted by aliasT.W. on Friday, April 12, 2019 6:58 PM

I'll be watching this one, love these johan classics.Big Smile

  • Member since
    May, 2015
Posted by Goofy62 on Friday, April 12, 2019 7:14 PM

Now comes the real fun! Stick out tongue

I decided that I needed to figure out a good way to update the interior by removing the convertible top wells.

This required a lot of modification but it seems to have worked pretty well.

I started by cutting the door panels from the interior tub.

Then the top well section was removed and replaced with plastic sheet in several layers to bring it back to the correct thickness.

The original pleated sections of the door panels were saved, re-scribed and filed and sanded for better definition.

Then all of the original trim, arm rests and window cranks were removed and the task of replacing it all began.



Steve



  • Member since
    May, 2015
Posted by Goofy62 on Friday, April 12, 2019 7:17 PM

More pics.



Steve





  • Member since
    May, 2015
Posted by Goofy62 on Friday, April 12, 2019 7:26 PM

As I worked on the door panel process, it was also necessary to fabricate some filler panels for the rear seat.

I also replaced the door badges with some plastic stock.

At this point, the basic door cards and rear seat are pretty much done.

When an interior tub is cut apart, there is inevitebly narrowing of the interior tub due to material loss, so strips were added to the floor sides to widen the tub back to original size.





Steve





  • Member since
    May, 2015
Posted by Goofy62 on Friday, April 12, 2019 7:35 PM

Next, a few mods were started on the seats and console.

The seats were just gone over with some selective scribing and sanding to improve definition, and grooves were scribed into the seat back for the seperation of the upholstery and the carpeted seat back evident on the 1:1.

Likewise, the console had all of the trim and glove box door lines scribed in.

A section of the "skirt" at the rear of the console was removed to resemble to real article, floor "courtesy lights" were added, and a hole cut for the four speed boot.





Steve









Console before.





Console after.

  • Member since
    May, 2015
Posted by Goofy62 on Friday, April 12, 2019 7:39 PM

Next, I began fabricating some arm rest detail, which will be added at a later time after painting.



This is the point that I am at right now.

For the most part, the interior is ready for priming.





Steve





  • Member since
    January, 2017
Posted by 195X on Friday, April 12, 2019 8:51 PM

You got MY attention with the title! One of my favorite cars. Question: What inner fenders did you use?

My favorite color is clear. I am also ambidexterous, I can screw up equally well with either hand. I am 53 years old and been building for most of that time. :)

On the bench... somewhere. Pink Panther show car, 1978 Dodge Magnum Charger Daytona Midnight edition SE 300. Mongrel T.

  • Member since
    May, 2015
Posted by Goofy62 on Friday, April 12, 2019 10:31 PM

195X

You got MY attention with the title! One of my favorite cars. Question: What inner fenders did you use?



They are from the original Johan '65 Plymouth chassis.

They had been detailed a little the first time that I started this project.

So I decided that I could cut them from the original chassis and utilize them here.



Steve

  • Member since
    January, 2017
Posted by 195X on Friday, April 12, 2019 11:23 PM

Goofy62




195X

You got MY attention with the title! One of my favorite cars. Question: What inner fenders did you use?







They are from the original Johan '65 Plymouth chassis.



They had been detailed a little the first time that I started this project.

So I decided that I could cut them from the original chassis and utilize them here.



Steve



Nice! They just looked kind of smooth and generic, so I figured they'd make a good base for several different cars. Thanks for the info. Now please post more. :D

My favorite color is clear. I am also ambidexterous, I can screw up equally well with either hand. I am 53 years old and been building for most of that time. :)

On the bench... somewhere. Pink Panther show car, 1978 Dodge Magnum Charger Daytona Midnight edition SE 300. Mongrel T.

  • Member since
    May, 2015
Posted by Goofy62 on Saturday, April 13, 2019 5:44 PM

Interior is primed and mocked up.

Everything seems to be acceptable, so on to more body prep. Smile





Steve





  • Member since
    January, 2011
  • From: long island, new york
Posted by chucky on Saturday, April 13, 2019 11:05 PM

Impressive interior enhancements once again! What a transformation! Those big interior mounting "loops" sure  bring back some memories!  Geeked

chucky

  • Member since
    October, 2015
Posted by Tim Boyd on Sunday, April 14, 2019 9:19 AM

Steve.....this is a highly impressive project so far.  Congratulations!  And excited to see how it progresses as you continue your work!   TIM

  • Member since
    February, 2008
Posted by justmike on Monday, April 15, 2019 5:44 PM

Thats some neat fabrication. What did you use for the courtesy lights on the console?

Feelings are like scents: The more they are analyzed, the worse they smell.
  • Member since
    May, 2015
Posted by Goofy62 on Monday, April 15, 2019 9:10 PM

justmike

Thats some neat fabrication. What did you use for the courtesy lights on the console?



Just a thin slice of styrene tubing for the time being.

Eventually it will be foiled with a shot of Lazer Bond or epoxy for a lens.

The dome lights in the C-pillars will be done the same way.



Steve

  • Member since
    May, 2015
Posted by Goofy62 on Monday, April 15, 2019 9:19 PM

I decided that the firewall from the '64 Color Me Gone kit was not going to cut it for me, so I decided that I would modify it to more closely resemble the correct '65 Fury firewall.





Steve



  • Member since
    May, 2015
Posted by Goofy62 on Thursday, April 25, 2019 3:20 PM

With the Easter holiday out of the way, I now have a bit more time to spend at the bench.

Spent a little time getting started on replacing the firewall wiring.

I also spent some time mocking up the hood hinge/spring arrangement.

If it goes as planned, I should be able to display the finished model with the hood opened, or closed.





Steve





  • Member since
    December, 2007
  • From: Portland Oregon: Tree Country. Most beautiful area on the West coast.
Posted by Treehugger Dave on Thursday, April 25, 2019 4:18 PM

Steve,

I've been following along since you started this project.

This has been my favorite style of building that I've been doing for several years. Fun to watch how someone else approaches a build like this. I'll definetly keep watching.

Dave Cool













  • Member since
    May, 2015
Posted by Goofy62 on Saturday, April 27, 2019 4:36 PM

The firewall is ready for paint and detailing.

I provided a "before" shot of the firewall from the "Color Me Gone" Dodge kit that this firewall was built from to help illustrate the modifications.







Steve





  • Member since
    May, 2015
Posted by Goofy62 on Thursday, May 02, 2019 4:05 PM

While I work on getting the final coats of primer on the body parts, I managed to find the time to get the wheel components painted.





Steve





  • Member since
    May, 2015
Posted by Goofy62 on Thursday, May 02, 2019 9:45 PM

Ready for paint!





Steve



  • Member since
    April, 2019
  • From: Montreal, Canada
Posted by Rockgarden on Friday, May 03, 2019 12:47 AM

That firewall really jumps out now that we see it in context in the car.  Nice work.  This is going to be great!

  • Member since
    May, 2015
Posted by Goofy62 on Tuesday, May 21, 2019 6:04 PM

Work on this project has slowed a bit due to my work schedule mainly, but I have still been able to get some work done on a few things.

I've decided on a Missing Link wedge intake along with a pair of Fireball Carter carbs.

I have begun fabricating an exhaust system using the Lindberg '64 Belvedere mufflers and scratching pipes from styrene rod.

I've finally settled upon a wheel configuration as well.

I'm using the spokes from the AMT '62 Belair Torque Thrusts.

The outer rims are leftover racing parts from the AMT '67 Galaxie kit, and the center caps were shaved from some 1967 mustang wheels.

All I need to do is add some Molotow chrome on the lug nuts and possibly some valve stems.







Steve





  • Member since
    October, 2017
  • From: New Prague MN
Posted by 60Buick on Tuesday, May 21, 2019 9:48 PM

Steve, been following this along from the start. "Picasso" at his best!

Meant to mention it Sunday when I saw you, but got sidetracked when I met your lovely bride! Pretty easy to see, your a great couple.

Thanks for sharing your projects, inspiration for I wanna be like Steve!

Can't wait to see this one completed. I've said it before, Scale Auto needs to come knocking at your door!

  • Member since
    May, 2015
Posted by Goofy62 on Saturday, May 25, 2019 12:46 AM

The first part of this project that you can call finished! Smile





Steve





  • Member since
    November, 2003
  • From: East Bethel, Mn
Posted by midnightprowler on Sunday, May 26, 2019 6:54 AM

Wow!

1 Corinthians 15:51-54
1 Thessalonians 4:13-18

Ask me about Speedway Decals

  • Member since
    May, 2015
Posted by Goofy62 on Monday, May 27, 2019 1:01 AM

Slight change of plan.

The parts that I recieved from a member of another forum were not proportioned correctly for the Lindberg block, so it's back to plan A

I guess the intake that I originally modified doesn't look half bad now that it's in primer.

The scratch built exhaust is also finished, primed and ready for paint.

It seems to have turned out quite well also.





Steve





  • Member since
    May, 2015
Posted by Goofy62 on Monday, May 27, 2019 10:16 PM

The first couple of color coats are on!

The color is correct 1965 Plymouth "Medium Turquoise" supplied by Scale Finishes.

This paint is an absolute joy to work with!

It lays down perfectly smooth and even with no effort!

Wonderful stuff!!





Steve
