1972 Chevelle SS (high-detail build)
Posted by Retro Joe on Sunday, May 06, 2018 2:39 PM

This one took me exactly a month (weekends & evenings). When I unexpectedly found the '72 Chevelle kit at my local hobby shop, I knew I was going to attempt a high-detail build, and I'm excited to share how it turned out. Parts of five different kits were used, to add detail & accuracy:



  • Member since
    April, 2013
Posted by Retro Joe on Sunday, May 06, 2018 2:47 PM

I'll begin with the first piece I started with...the grille. I had 3 different ones to choose from, and I knew the grille from the 2002 release (red car on box) was terribly incorrect. So, I chose the grille from a 1981 release that I had built decades ago (it had been disassembled a few years ago).

After foiling over the old black paint, I drilled out the molded-on headlights:

An old chrome blower from the parts bin provided the headlight buckets:

Since the newer release of the '72 comes with clear lenses, I used these:

Here's a comparison of the incorrect grille from the 2002 kit, compared to the older style one I'm using:

Next up... chassis & suspension.

  • Member since
    April, 2013
Posted by Retro Joe on Sunday, May 06, 2018 2:54 PM

The chassis, suspension & exhaust systems on this build come from the AMT '69 Oldsmobile 4-4-2. I am using this because of the steerable front suspension. I found an older release at my local hobby shop, which was less expensive than the newly re-released Olds kit. I had the sudden idea to use springs from an old ink pen, rather than the plastic kit ones.

I painted the chassis with the body color, then painted the frame black.

I knew that most Chevelles sit too low in the rear, so I added some shims under the rear axle before getting too much further. The wheels are from the new release of the Oldsmobile kit (someone had stolen them out of the older kit I bought, then re-sealed the box). Tires are from the AMT parts pack I've had for years. I knew they would work with the wheels, because the new release of the 4-4-2 comes with the same tires (but printed with Firestone instead of Goodyear).

The position of the transmission cross member wasn't going to work with the engine I'm using, so I cut it out and moved it back.

The completed chassis looks like this:

  • Member since
    April, 2013
Posted by Retro Joe on Sunday, May 06, 2018 3:05 PM

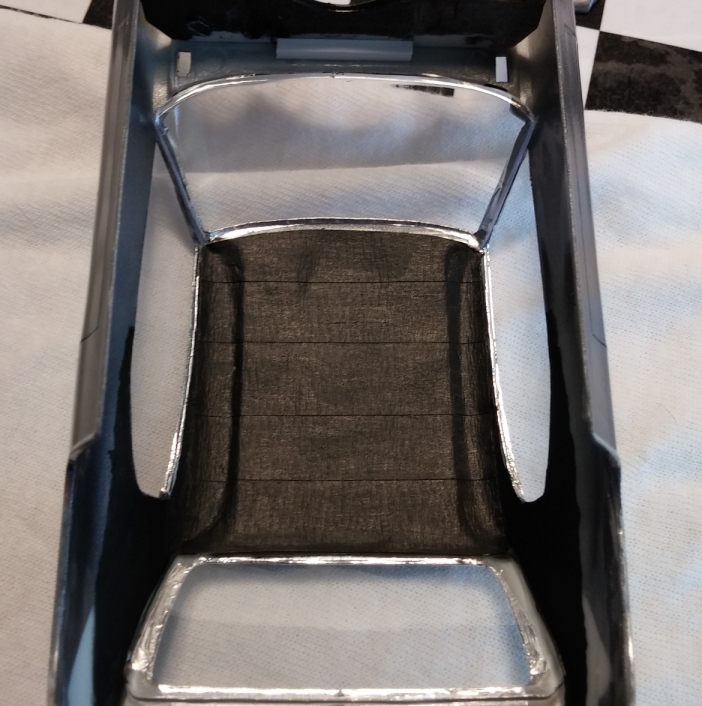

Now, for the interior. This was an adventure! I was dismayed that I would have to use the barely-there detail from the AMT Chevelle kit, but then someone on the Facebook group suggested I use the Revell Snap-Tite interior, since it is 1:25 scale. I happened to have an unopened kit in my stash, and the interior detail is phenomenal! Here is a comparison (Revell parts are the darker gray):

Interior paint is Model Master Semi-Gloss Black. Trim is done with the Molotow chrome pen. Seat belts were made from ribbon found at Michaels for 50 cents a roll. Seat belt hardware is from a Detail Master photoetch set. The carpet is adhesive felt (also found at Michaels for about a dollar):

Dash detailing. Molotow chrome, homemade waterslide gauge and "Chevrolet" decals.

Completed interior. Someone left their magazine on the passenger seat:

  • Member since
    April, 2013
Posted by Retro Joe on Sunday, May 06, 2018 3:16 PM

On to the engine! This is built from the AMT 1970 Monte Carlo kit, which also includes all the other bells & whistles that go in the engine compartment (firewall, heater hoses, A/C hoses & compressor, fully-detailed radiator with fan shroud, etc.). I sprayed the engine with Model Master Hugger Orange (a suitable replacement for Chevy engine red, plus I wanted a lacquer finish). Then I got out my firing order chart and wired up the 454, using a pre-wired distributor from M.A.D.:

I even made a "Fram Racing" oil filter decal.

Radiator was mocked up and mounting brackets were made to get it in the proper position.

I spent about an hour carefully cutting the radiator cover/hood latch piece out of the Monte Carlo body. The shape works perfectly for the Chevelle.

Next up: The new interior causes some major troubles...

  • Member since
    April, 2013
Posted by Retro Joe on Sunday, May 06, 2018 3:24 PM

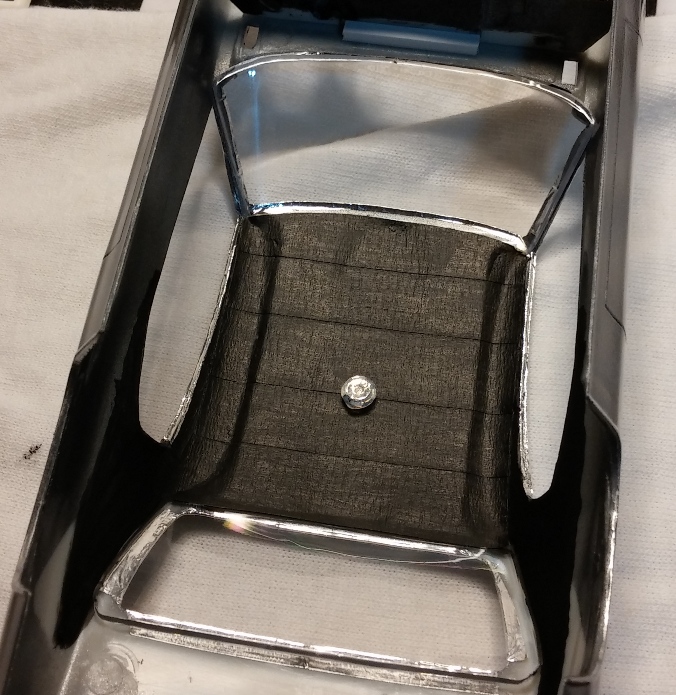

So, in my desparate attempt at detail, I knew I had to make the Revell interior work. However, when everything was mocked up together, the interior tub was too high, and caused the body to sit up on top of the chassis plate, instead of down over it. :(

I spent an entire evening grinding the top of the chassis pan and the bottom of the interior tub with my dremel. Then, after a night of brainstorming, I removed the already-completed interior door panels, and cut about 1/8" off the top of the interior tub. I then cut the same amount off the bottom of the door panels, making the entire tub 1/8" shorter! I would have to do some more trimming just before final assembly, but this did the trick, and the body sits properly now.



Body work & paint are next!

  • Member since
    April, 2013
Posted by Retro Joe on Sunday, May 06, 2018 3:38 PM

Normally, I paint the body first, but I had some fun working back & forth with many other parts of this build, and didn't get to the body work until a couple weeks in. Plus, winter held on much too long around here, and it was too cold to paint for awhile. Finally, the Chevelle got its 4 coats of Tamiya Light Gunmetal (TS-42).

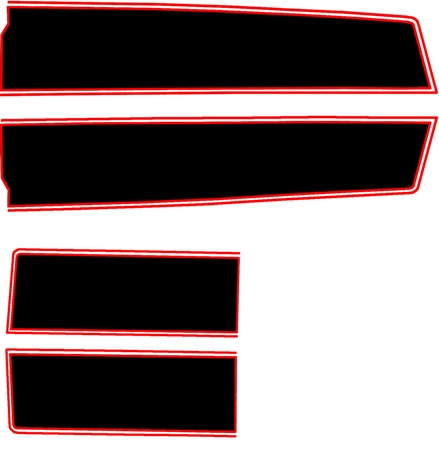

For the graphics, I wanted a bit of a custom touch, so I made my own decals from a scan of some old kit decals. I had to re-draw the angles on the hood stripes before printing them, because they were too straight across. I added red accent pinstripes to the traditional SS stripes for my custom touch.

Decals went on pretty well, but I stretched one of the hood decals, leaving a bare spot. Since I made my own, I just reprinted the stripe and reapplied the next day.

4 coats of Testors Wet Look Clear lacquer came next, followed by Bare Metal Foil (and Molotow pen for some areas) for the chrome. I installed the windows in one piece (they have runners that go between the front & rear). I traced the area in between, and made a filler piece out of sheet styrene. Then, I made a headliner out of layers of masking tape, and painted it black.

A clear lens and a trimmed-down chrome police car spotlight from the parts bin came together for the dome light.

And, then it was ready to finish and show off! Completed photos are next...

  • Member since
    April, 2013
Posted by Retro Joe on Sunday, May 06, 2018 4:01 PM

Before the finished photos, here's a comparison of the engine compartment detail (box stock AMT on the left).

  • Member since
    April, 2013
Posted by Retro Joe on Sunday, May 06, 2018 4:04 PM

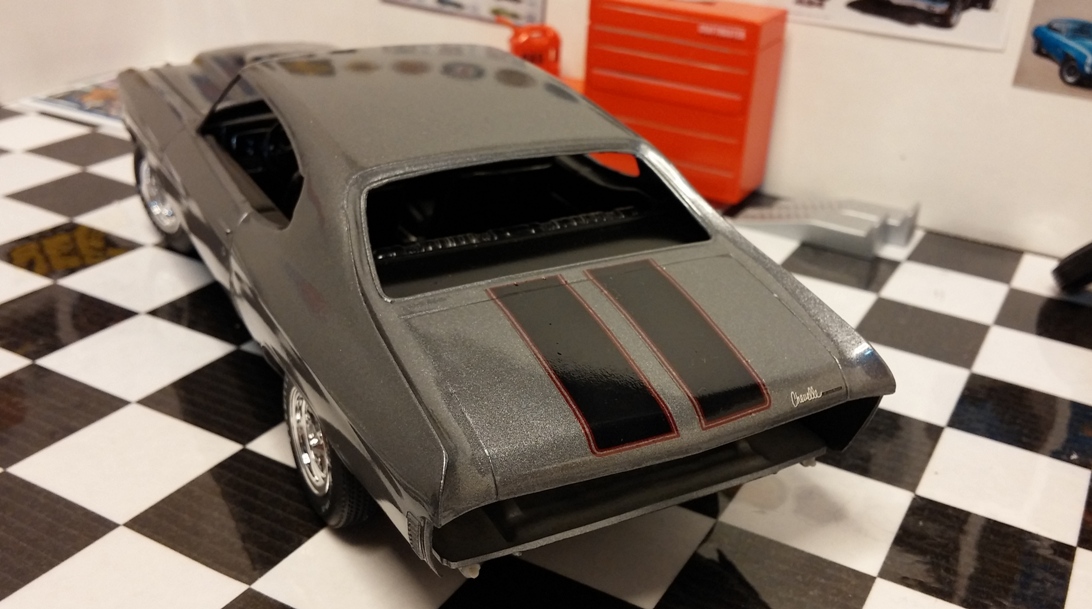

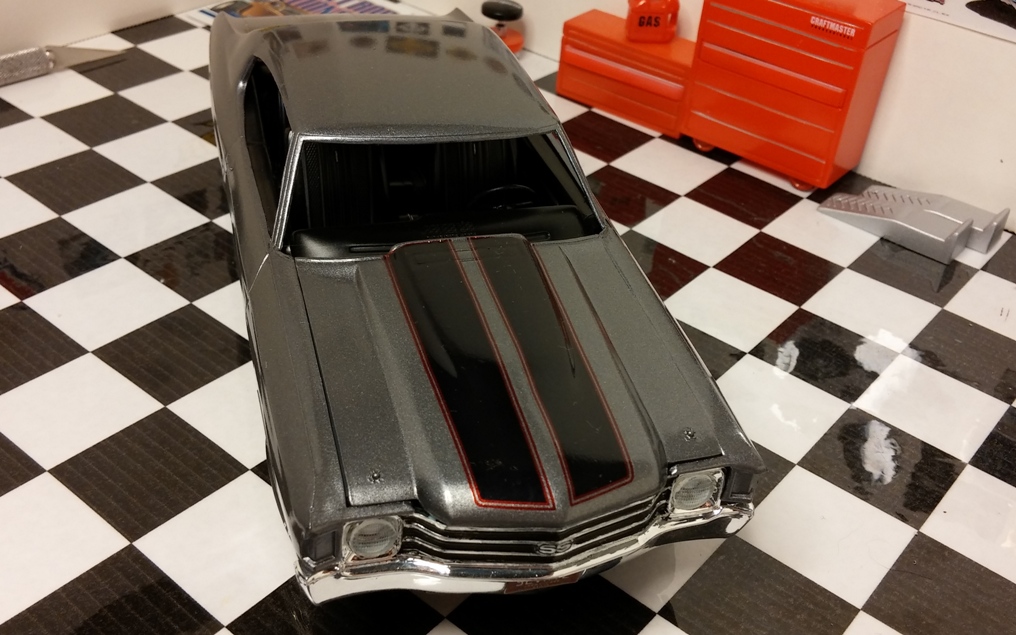

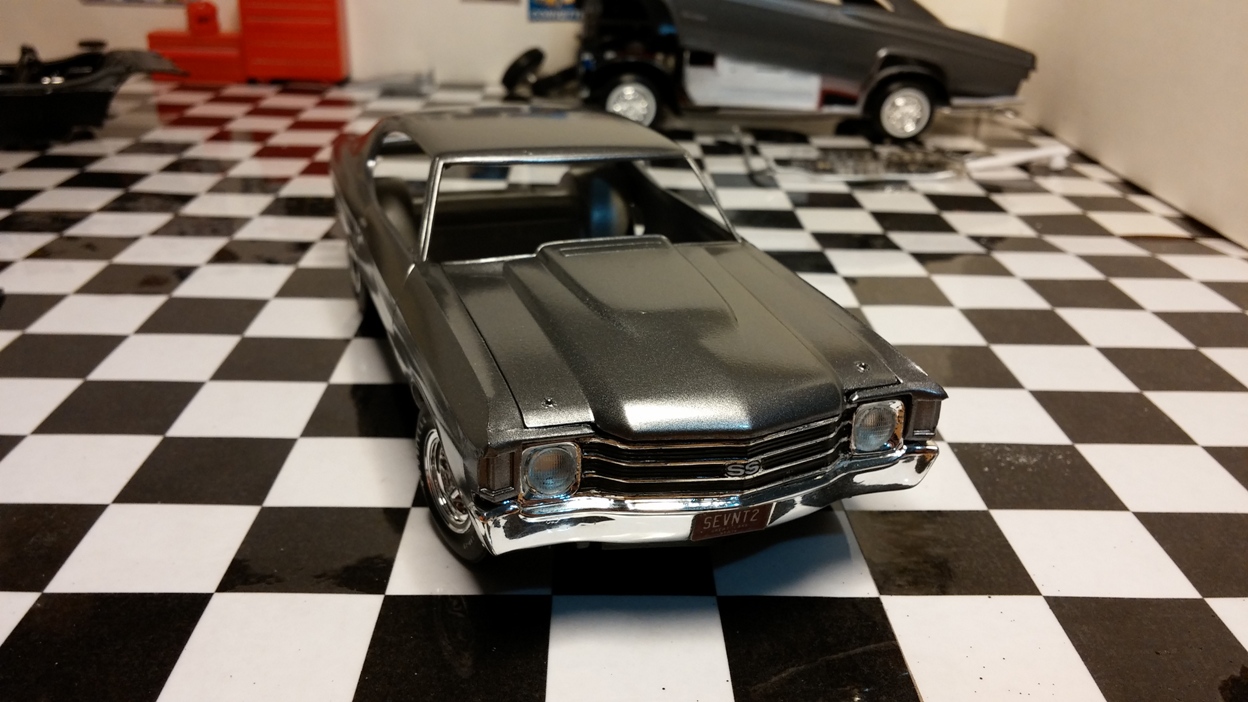

I added a few more things, like inner fender panels and some photoetch grille for cowl vents. And finally, here it is...nicknamed "Super-Chevelle"! Thanks for looking!
